Pipe inspection system Tubicam DUO

The TUBICAM DUO ® is the result of high customer’s demands who wished to have the 2 different camera heads on the same equipment. It allows you to have 2 cameras (22 mm and 50 mm) with an advantageous price.

More details

CAD$7,580.65

CAD$8,715.85

More info

Thanks to this cameras combination, you will be able to fill the majority of your need in pipe inspections. You benefit from two cameras diameters: Ø22 mm (7/8”) and Ø50 mm (2”) for inspection in pipes from 50 mm to 400 mm.

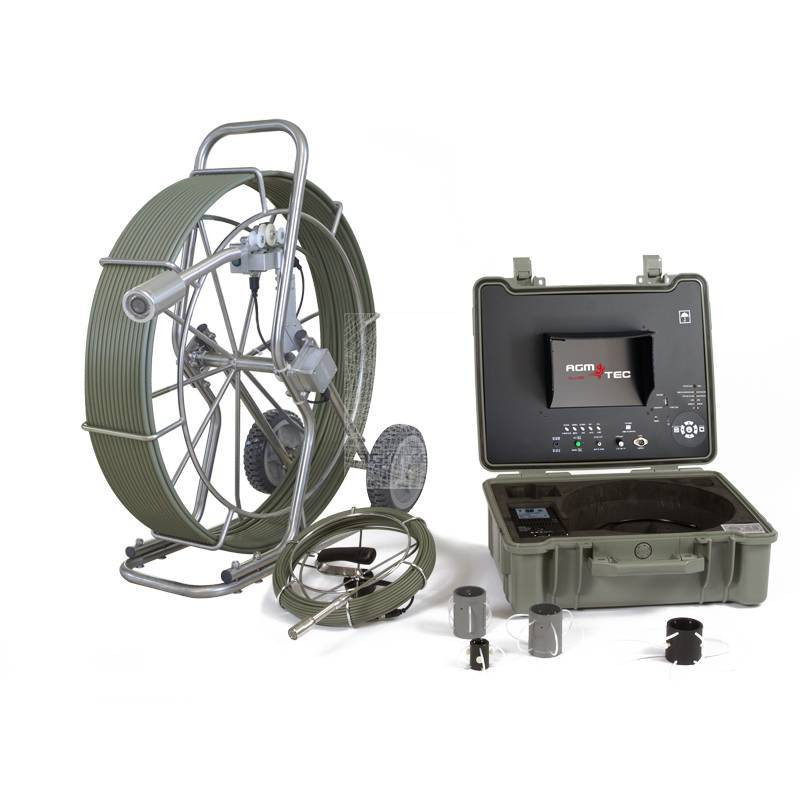

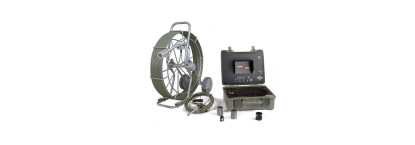

The inspection case is accompanied by a 30 (100’) or 40 (130’) meters portable reel and its Ø22 mm camera (7/8”) + a 60 (200’) or 120 (400’) meters big reel with wheels and its Ø50 mm camera (2”).

  • The 50 mm camera (2") is equipped with pendular technology which ensures that the person who operates always has a horizontal image.
  • It is protected by a sapphire glass, scratch-proof and unbreakable.
  • It crosses 90° elbows from diameter 125 mm (4”).
  • A meter counter is positioned on the big reelto indicate the distance driven by the camera.
  • It is Supplied with three adjustable skid : 9 cm / 14 cm / 22 cm (3” / 4” / 6”) for Ø50 mm camera and one adjustable skid : 10 cm for Ø50 mm camera.

User’s manual and switch buttons : English and French

Data sheet
Cable length30 ou 40 mètres (100' ou 130') / 60 où 120 mètres (200' ou 400')
Diamètre du câble vidéo4,5 millimètres
Fonction enregistrementVidéo et son Via port USB
Puissance de l'adaptateur110V AC- 240V AC / 12V DC
BatterieLi-ion
Résistance2 bars
Températures (min/max)-28°C / +50°C
Dimensions de la malette53 x 43 x 20 cm (21 x 24 x 12'’)
Poids brut38 kg
CaméraCMos couleur (Ø22 mm) et CMos couleur (Ø50 mm)
Eclairage12 LEDs blanches (Ø 22mm) / 21 LEDs blanches (Ø 50mm)
Longueur de la caméra5,2 cm (2’’) en Ø 22mm / 8 cm (5’’) en Ø 50mm
Angle de vue caméra90° (horizontal), 90°(vertical)
Portée de l'éclairage~ 400 mm (16')
EcranTFT LCD 7'
Résolution640 x 480 px
Image du moniteurCouleur
Voltage de l'écran12 Volts DC
Garantie1 an pièces et main d'oeuvre.
