Pipe inspection system Tubicam R
Thanks to its small 22 mm diameter, the TUBICAM / R ® is an effective and easy to use pipe inspection system. This equipment, compact and easily transportable, offers you an image of high quality.

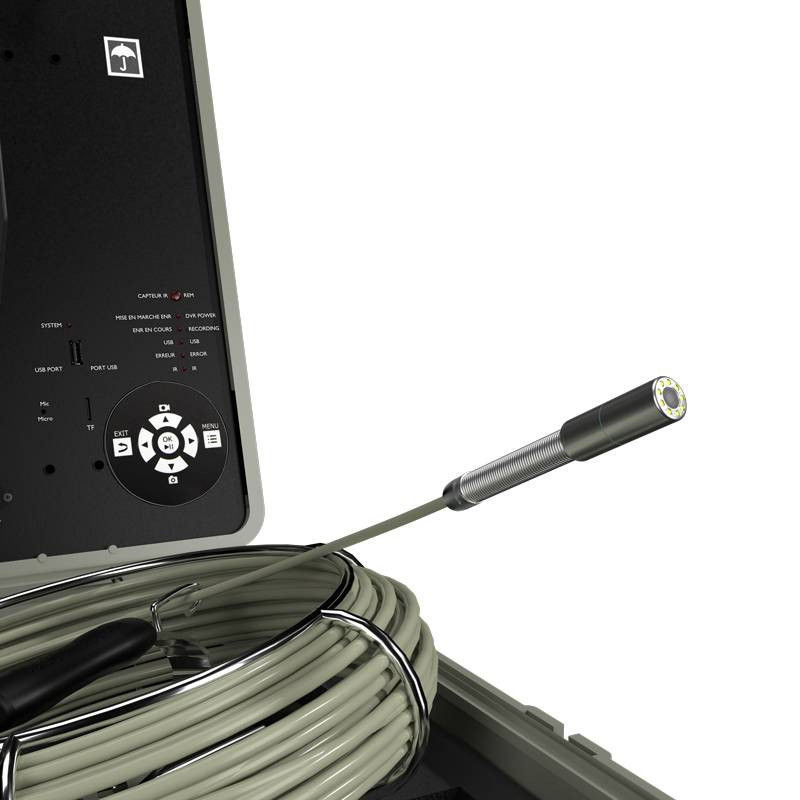

The TUBICAM/R® is a video inspection system which allows the inside pipes visualization. Totally waterproof, its cylindrical 22 mm camera (7/8’’) outing of 12 white LEDs around the objective offers a clear vision on its 7 "or 10" color LCD screen. It is wired on a fiberglass video cable on 30 (100’) or 40 (130’) meters reel.

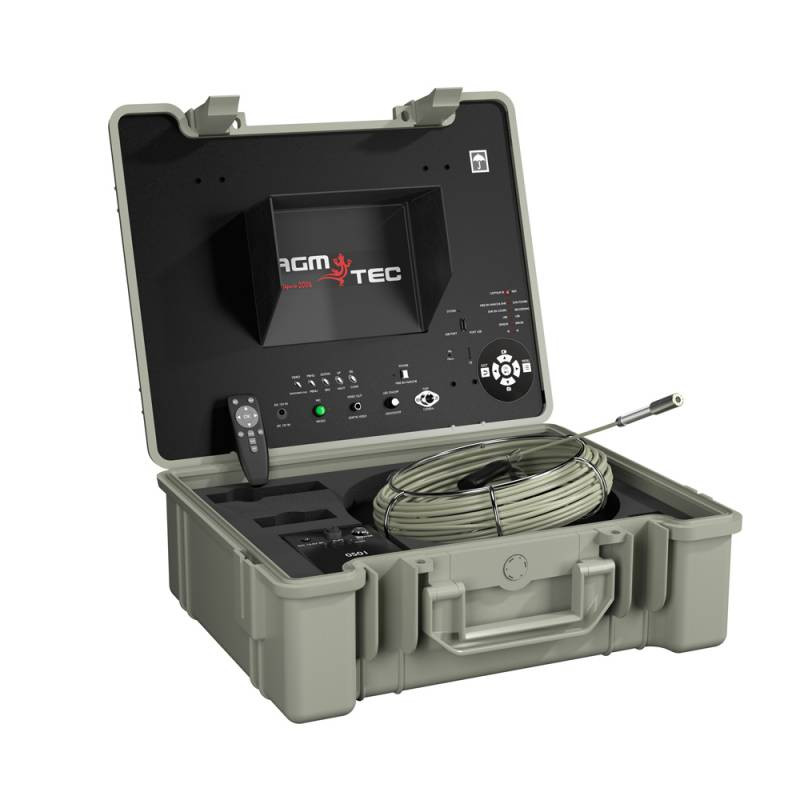

The material is delivered in a stiff ABS case and powered by a Li-ion 12 Vdc battery (the autonomous power of the system). The case is endowed with a recorder which allows to record photos, videos and audio comments on USB key or micro SD card (maximum capacity of 8Go which represents 5h20 of recording).
The 22 mm camera (7/8 ") operates in pipes from diameter 25 to 150 mm and crosses 90° elbows from diameter 60 mm. Supplied with an adjustable skid, the evolution of the cable in the pipe will be facilitated.
User’s manual and switch buttons : English and french
| Cable length | 30 ou 40 mètres (100' ou 130') |
| Diamètre du câble vidéo | 5,2 mm |
| Fonction enregistrement | Audio, Vidéo, Photo (port USB et micro SD) |
| Puissance de l'adaptateur | 110V AC- 240V AC / 12V DC |
| Batterie | Li-ion |
| Résistance | 2 bars |
| Températures (min/max) | -20°C / +60°C |
| Dimensions de la malette | 53 x 43 x 20 cm (21 x 24 x 12'’) |
| Poids brut | 13Kg |
| Caméra | CMos couleur |
| Diamètre de la caméra | 23 mm |
| Eclairage | 9 LEDs |
| Longueur de la caméra | 42 mm |
| Angle de vue caméra | 90° (horizontal), 90°(vertical) |
| Ecran | TFT LCD 7' / TFT LCD 10' |
| Résolution | 640 x 480 px |
| Image du moniteur | Couleur |
| Garantie | 1 an pièces et main d'oeuvre. |
| Tubitexte | Module d’incrémentation de texte à l’écran sur la vidéo |
Super camera de drain de qualité.
