Pipe inspection system Tubicam XL

The TUBICAM XL® is a pipe inspection system dedicated to big diameters. It operates easily on great distances which can go to 120 meters.

More details

CAD$6,372.40

CAD$7,326.67

This product is no longer in stock

More info

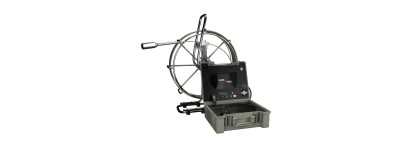

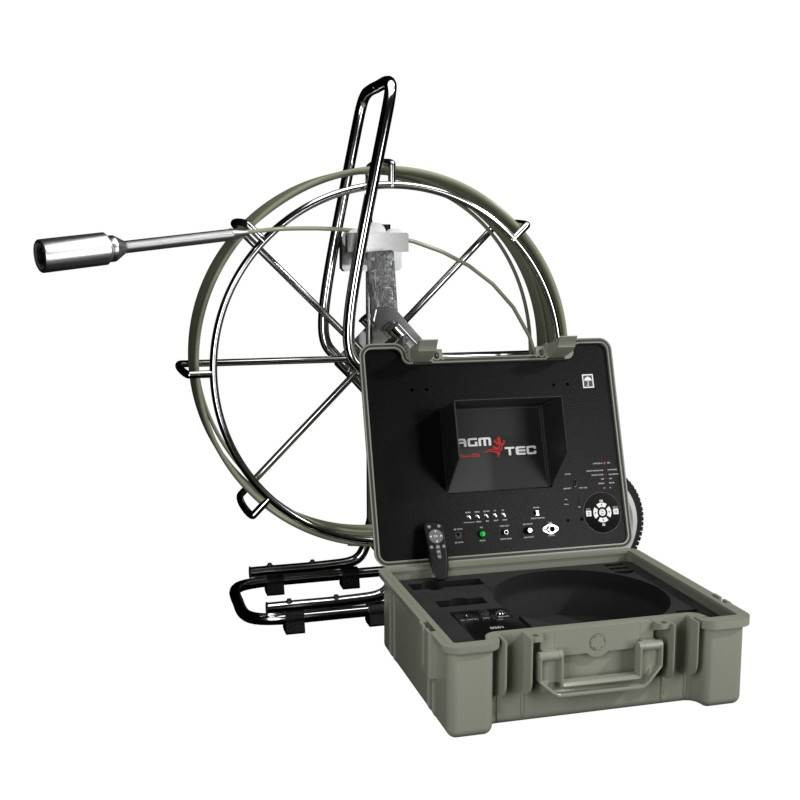

The TUBICAM XL® is a video inspection system which allows the big pipes inspection. Totally waterproof, its cylindrical 50 mm camera (2’’) outing of 21 white LEDs around the objective offers a clear vision on its 7 "or 10" color LCD screen. It is wired on a fiberglass video cable on 60 (200’) or 120 (400’) meters winded around a big reel with wheels.

The material is delivered in a stiff ABS case and powered by a Li-ion 12 Vdc battery (the autonomous power of the system). The case is endowed with a recorder which allows to record photos, videos and audio comments on USB key or micro SD card (maximum capacity of 8Go which represents 5h20 of recording).

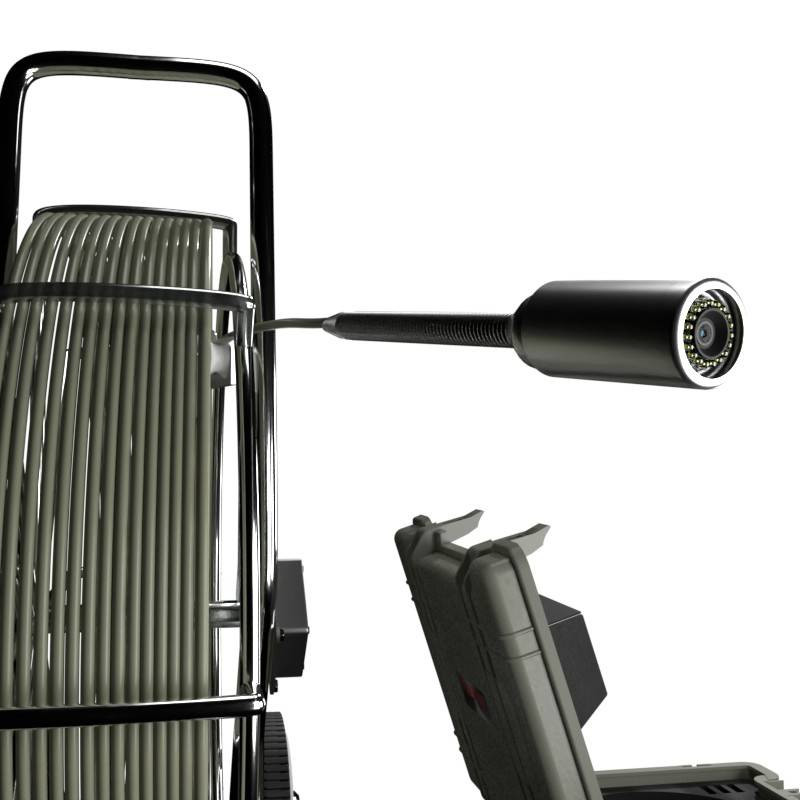

  • The 50 mm camera (2") is equipped with pendular technology which ensures that the person who operates always has a horizontal image.
  • It is protected by a sapphire glass, scratch-proof and unbreakable.
  • It crosses 90° elbows from diameter 125 mm (4”).
  • A meter counter is positioned on the big reelto indicate the distance driven by the camera.
  • It is Supplied with three adjustable skid : 9 cm / 14 cm / 22 cm (3” / 4” / 6”).

User’s manual and switch buttons : English and French

Data sheet
Cable length60 ou 120 mètres (200' ou 400')
Fonction enregistrementVidéo et son Via port USB
Puissance de l'adaptateur110V AC- 240V AC / 12V DC
BatterieLi-ion
Résistance2 bars
Températures (min/max)-28°C / +50°C
Dimensions de la malette53 x 43 x 20 cm (21 x 24 x 12'’)
Poids brut36 kg
CaméraCMos couleur
Diamètre de la caméra50 mm (2')
Eclairage21 LEDs blanches
Longueur de la caméra8 cm (5')
Angle de vue caméra90° (horizontal), 90°(vertical)
Portée de l'éclairage~ 400 mm (16')
EcranTFT LCD 7'
Résolution640 x 480 px
Image du moniteurCouleur
Voltage de l'écran12 Volts DC
Garantie1 an pièces et main d'oeuvre.
